How to Select the Right Windsurf Fin Size – A Practical Guide
Welcome, windsurfers! In this tutorial, I’ll walk you through how to choose the right windsurf fin size, based on the same principles I used when developing my own fin under the NP7 brand. This guide will answer two important questions:
• How do you know which fin fits which board?
• Which fin sizes do I personally use?
At the end, I’ll also share one bonus tip that can make a real difference. Let’s dive in.
Why Fin Choice Isn’t So Simple
There are endless combinations of boards and fins. Just think: 10 board brands with 5 board ranges each, and 5 sizes per range already makes 250 options. Add 10 fin brands, 3 models each, with sizes from 30–40 cm and you’ve got 75,000 combinations.
There’s no magic chart that matches every fin to every board — but I’ll show you how to understand what works and what doesn’t.
What to Consider When Choosing a Fin
To make the right choice, you need to take into account several key factors:
• Your discipline and goals
• Board size
• Sail size
• Conditions
• Your height and weight
• The fin characteristics
It might sound like rocket science, but don’t worry — even if you don’t get every factor right, you can still have a great time on the water.
Start by asking yourself: what kind of windsurfer do I want to be?
• Into maneuvers?
• Prefer freeriding and cruising?
• Want to go as fast as possible?
This will determine your board and sail, which in turn guides your fin choice.
Examples:

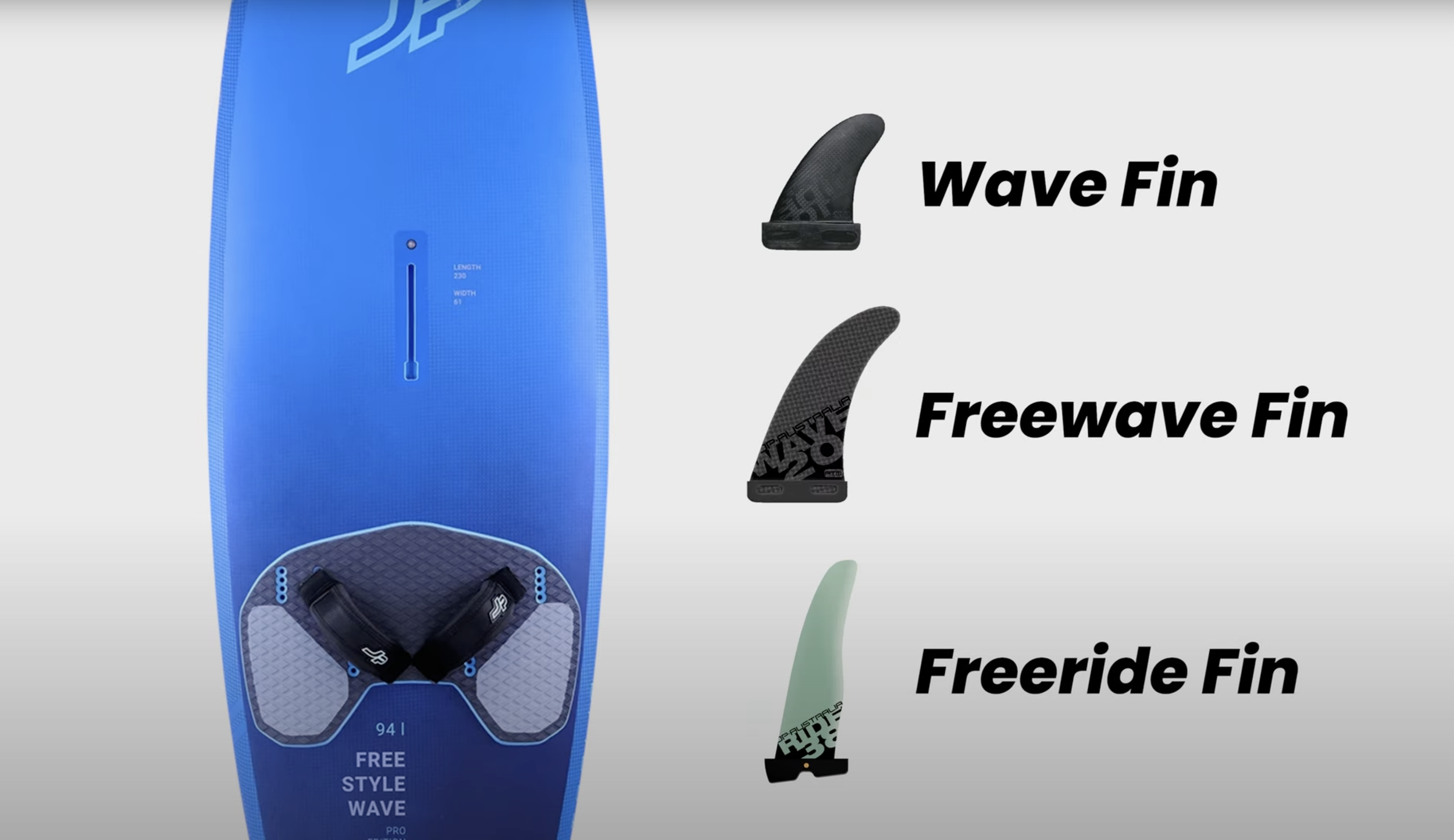

• A Freewave board can use wave fins, freewave fins, or small freeride fins.
• A Freerace board can use freeride fins, freerace fins, or race fins.
Let’s say you ride a freeride board and want to go faster — try a freerace or race fin. But if you’re still getting comfortable with footstraps and harnesses, stick with a freeride fin until you’re ready to upgrade.
Your board’s size is the primary factor in choosing your fin size. To understand why, let’s first understand how the fin works.
How Fins Work
´To really understand why fin size is so important, it helps to know how a fin actually works on the water.
Think of the fin as a vertical surface under your board. It plays a crucial role in transforming sideways force into forward drive—and without it, your windsurfing setup simply wouldn’t work.
Let’s imagine you’re on the water without a fin:
As the wind hits your sail, it generates pressure. But instead of moving you forward, it tries to push you sideways in the direction the wind is blowing. Since you’re standing behind the sail, your board starts to pivot around the mast base, turning the nose of the board into the wind. The board essentially spins out—there’s no resistance to stop that rotation.
Now, insert the fin into the setup:
The same pressure from the sail tries to turn the board again, but this time the fin holds its line in the water, resisting that movement. It anchors the back of the board and channels the sideways force into forward motion.
But what exactly makes that happen?
It all comes down to the shape of the fin. The fin has a rounded leading edge, a camber (or curve) through the body, and a sharp trailing edge. This specific profile promotes clean water flow along the fin’s surface, guiding the water in the right direction. As the water moves faster over one side than the other, it creates a pressure difference—just like an airplane wing—which gives you lift and forward drive.
This effect becomes even more important when you start planing or sailing at higher speeds.
When you’re pushing your board from the side—whether it’s racing, freeriding, or just getting onto a plane—you’re not only pressing down through the board but also sideways against it. That pressure is transferred directly into the fin. And this is where leverage plays a key role:
The wider your board, the more distance there is between your feet and the fin.
More distance = more leverage.
More leverage = more pressure on the fin.
Board Size and Fin Size
• Wider and thicker boards = more leverage = need bigger fins
• Narrower boards = less leverage = smaller fins
Too small a fin on a wide board? You’ll “overpush” and spin out. Too big a fin on a narrow board? You’ll get over-lifted and lose control.

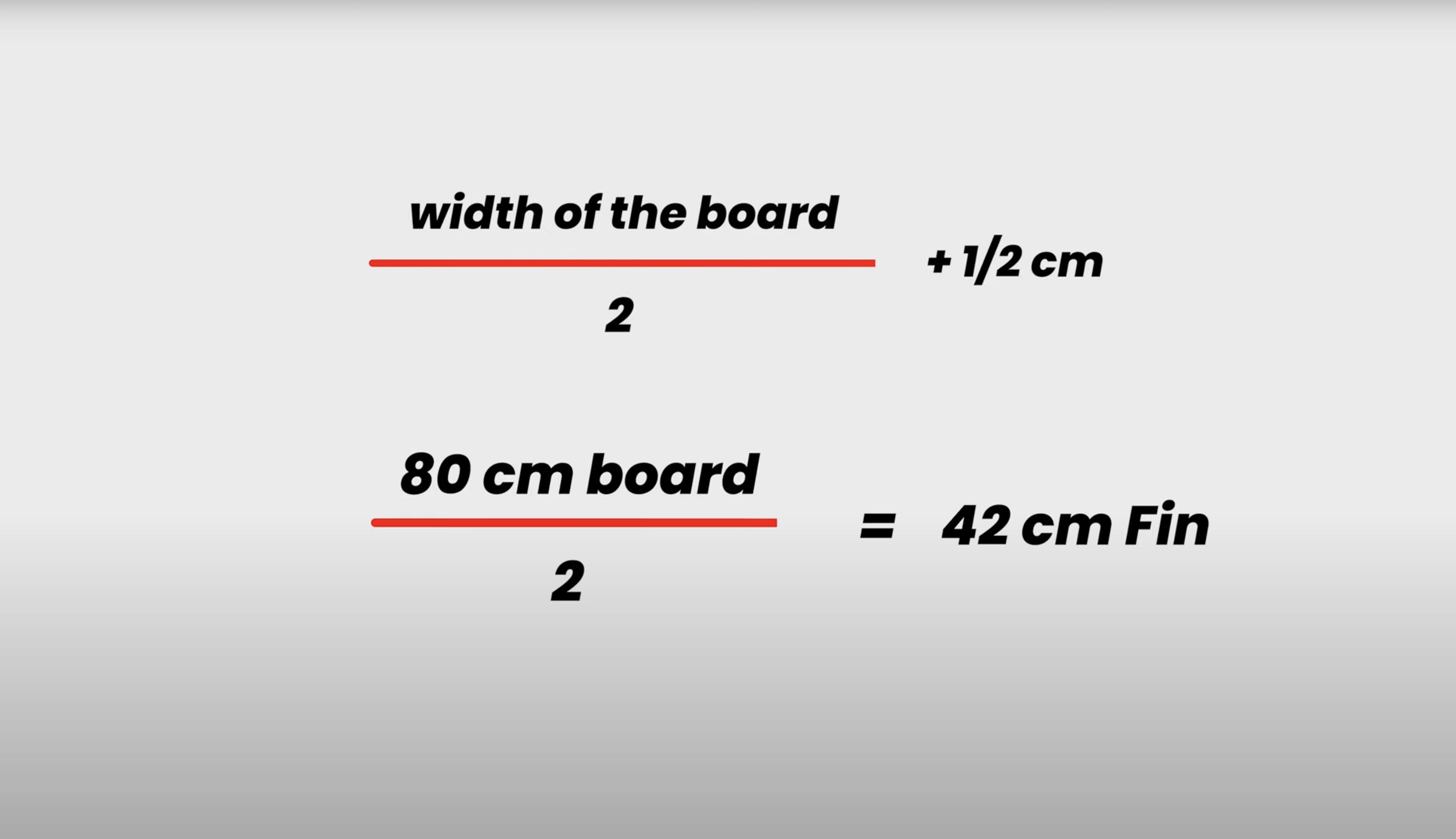

Rule of Thumb:
Take half your board’s width and add a few centimeters.
For example:
• 80cm board → ~42cm fin
Even more accurate: check the tail width of the board, as that’s where leverage is applied. Most board brands publish recommended fin sizes on their websites - always start there.
Sail Size
Your sail size also affects your fin choice. Bigger sails generate more sideways force and require more fin to balance.
• Big sail? Add 1–2 cm to the recommended fin size.
• Small sail? Subtract 1–2 cm.
But keep this in mind: All parts of the gear must work together.
If you use a big sail and fin on a small board, it won’t work. Bigger sails need bigger boards and fins, and vice versa.
Pro tip: since sails don’t come in super-fine size increments, you can use your fin size to fine-tune your setup.
Most board brands publish recommended fin sizes on their websites - always start there.
Conditions
Challenging conditions like strong wind and chop call for more control-oriented fin choices.
• If you’re fully powered up, go 1 cm smaller than normal.
• If you’re underpowered, go 1 cm bigger.
Your skill level also matters. Stick to freeride fins when using freeride gear if you’re still building confidence — they’ll give you more control and comfort.
Height and Body Weight
Your size also influences fin choice:
• Taller people can use fins more efficiently due to leverage.
• Heavier sailors often need slightly bigger fins, especially if they’re shorter than average.
But if you’re tall and heavy, it often balances out. Keep your whole gear setup in proportion.
Final Thoughts
Many factors affect fin size: board width, sail size, wind conditions, and body size. But don’t go overboard:
Stay within ±3 cm of the recommended fin size for your board.
Going beyond that risks upsetting the balance of your entire setup.
My Personal Fin Sizes
As promised, here’s what I use:
• 62.5cm slalom board → 31–33cm fin (mostly 32cm)
• 72cm board → 36–38cm fin (mostly 37cm)
• 85cm board → 44–46cm fin (mostly 45cm)
I use carbon fins for their reflex and direct water feedback. They’re slimmer, faster, and more responsive than glass fins. With the NP7 fin, I aimed for a design that powers up in light wind but stays balanced under pressure — like a sail that opens and handles gusts smoothly.
For me, getting to know the fin is key. I prefer sticking with a narrow size range and using the same brand across boards to build trust and consistency.
Wrap-Up
That was a lot of info! But now you’re ready to experiment, tweak, and most importantly — get out on the water.
If this helped, leave a comment, and don’t forget to subscribe to the YouTube channel for future tutorials.
🔍 1. Define Your Discipline & Goal
Freeride / Cruising
Freerace / Speed
Wave / Maneuvers
Slalom / Racing
📏 2. Check Your Board Size
Know the width of your board (especially tail width)
Apply the rule of thumb: board width ÷ 2 + a few cm
Stay within ±3 cm of the brand’s recommended fin size
🪁 3. Match Your Sail Size
Bigger sail? Add 1–2 cm to your fin
Smaller sail? Subtract 1–2 cm
Ensure the board-fin-sail combo stays balanced
🌊 4. Consider the ConditionS
Strong wind / choppy? Use 1 cm smaller fin
Light wind / underpowered? Use 1 cm bigger fin
Need more control? Choose a thicker, slower fin
🧍 5. Factor In Your Body Size
Taller rider? Possibly more efficient with smaller fins
Heavier rider? May require slightly bigger fins
Short and heavy? Consider upsizing your fin slightly
🔧 6. Understand Fin Design
Know your fin’s profile, layup, and material
Carbon fins = faster, more responsive
Stay consistent with one fin brand if possible
🎯 7. Fine-Tune Based on Feel
Do you spin out? Maybe your fin is too small
Do you feel over-lifted / out of control? Fin may be too big
Stay within a tight size range per board for consistency
